Mubea 180010 Chrome Vanadium Disc Spring 28X14.2X1.5

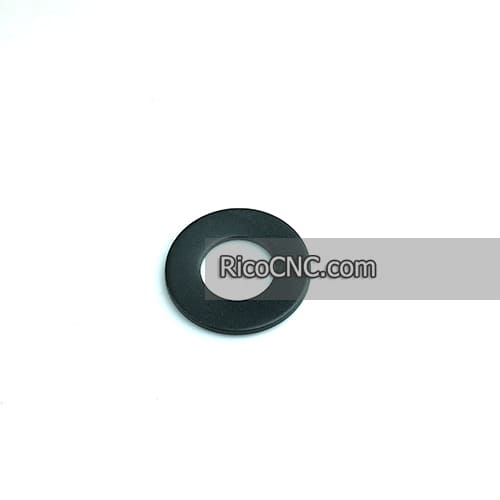

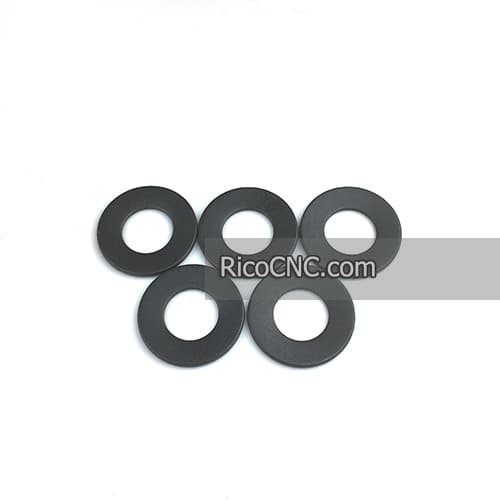

This is a belleville spring washer from MUBEA, the model number 180010, size is 28X14.2X1.5. The Mubea Machinery Disc Springs made of 51CrV4 with phosphatizing surface treatment. Ideal for heavy-duty machinery applications.
Mubea 180010 Belleville Spring specifications:
| Type | Belleville Disc Spring |
| Series | Group 2 - Thickness from 1.25 mm to 6 mm |
| Measurement System | Metric |
| Material | Chrome Vanadium Steel |
| Inside Diameter | 14.2 mm |
| Outside Diameter | 28 mm |
| Thickness | 1.5 mm |
| Load at Deflection | 2841 N |
| Load at Flat | 3690 N |
| Material Grade | 51CrV4 |
Mubea 180008 features:
• High temperature resistance & High fatigue life
• Different assemblies can be designed to achieve the desired load characteristics
• Special materials and various surface coatings available
• Better space utilization when compared to other spring types
• Low creep tendency with the correct dimensioning
• High load capacity with a small spring deflection
• EN 16983 (DIN 2093) standards
There are other Mubea springs here:
Germany Mubea Disc Spring Belleville Spring Washer for CNC Machine Spindles Drawbars
Mubea 180008 28x12.2x1.5 Chrome Vanadium Disc Spring
28X14.2X1.5 Mubea 180010
etc.
