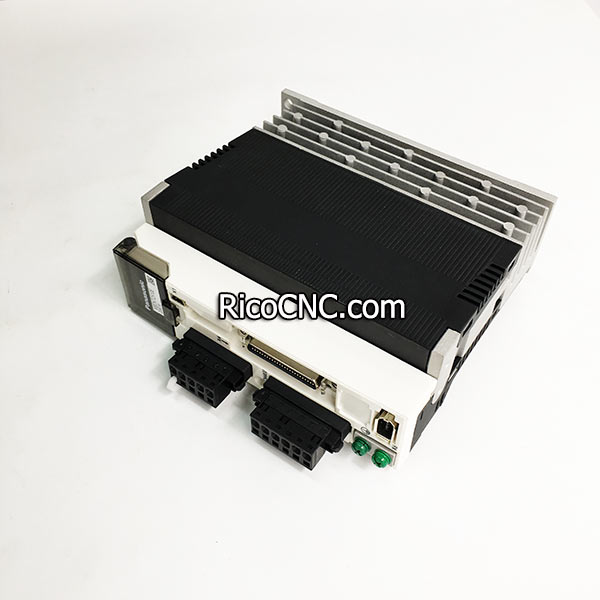

MBDHT2510E Panasonic A5 400W Servo Driver MINAS A5 Series Family Servo Controller

Part Number

MBDKT2510E

Details

A5ⅡE series

Position control type

without the safety function

Family Name

MINAS A5

Series

A5ⅡE series

Type

Position control type

Frame

B-Frame

Power

400w

Frequency response

2.3 kHz

Control method

Position control

Safety Function

without

Power device Max. current rating

15A

Current detector current rating

10A

Supply voltage

Single/3-phase 200 V

I/F Classification of type

Pulse train only

Dimensions (W) (Unit: mm)

55

Dimensions (H) (Unit: mm)

150

Dimensions (D) (Unit: mm)

130

Mass (kg)

1

Environment

For more details, please refer to the   instruction manual.

Input power: Main circuit

Single/3-phase 200 to 240V +10% -15%   50/60 Hz

Input power: Control circuit

Single phase 200 to 240V +10% -15% 50/60   Hz

Encoder feedback

20-bit (1048576 resolution) incremental   encoder, 5-wire serial

Parallel I/O connector:

General purpose 10 inputs

Control signal Input

The function of general-purpose input is   selected by parameters.

Parallel I/O connector:

General purpose 6 output

Control signal Output

The function of general-purpose output is   selected by parameters.

Parallel I/O connector:

2 outputs (Analog monitor: 2 output)

Analog signal Output

Parallel I/O connector:

2 inputs (Photo-coupler input, Line   receiver input)

Pulse signal Input

Parallel I/O connector:

4 outputs (Line driver: 3 output, open   collector: 1 output)

Pulse signal Output

Communication function

USB

Communication function: USB

USB interface to connect to computers for   parameter setting or status monitoring.

Regeneration

No built-in regenerative resistor   (external resistor only)

Control mode

Switching among the following 3 mode is   enabled,

(1) Position control, (2) Internal   velocity command, (3) Position/Internal velocity command
