  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
  • YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50
YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50 YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50

YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50

  • • Brand: Yuken
  • • Model: DSG-01-2D2-A110-50
  • • Yuken directional valve
  • • Yuken DSG series hydraulic valve
  • • Yuken Hydraulic Solenoid Valves
  • • YUCI-YUKEN Directional valve
  • • Yuken Directional Solenoid Valve
  • • Yuken DSG Series Hydraulic Directional Valve
  • INQUIRY

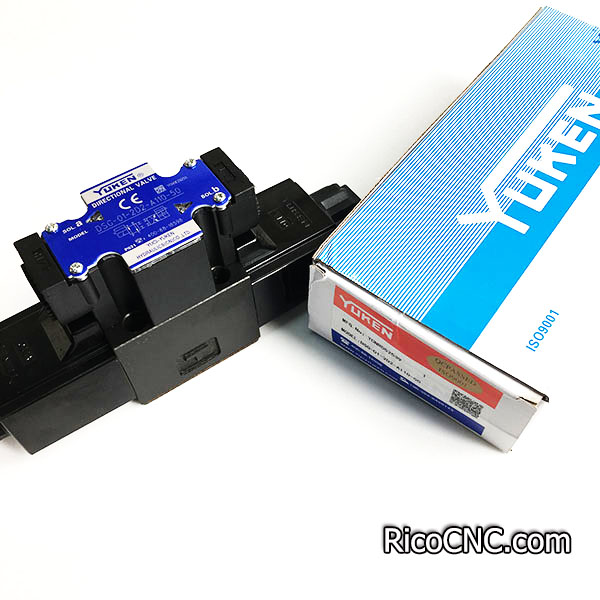

Yuken directional valve.jpg

YUKEN Hydraulic Solenoid Operated Directional Valves DSG-01-2D2-A110-50

This is Yuken brand DSG directional solenoid valve. These are solenoid operated directional Valves of high pressure, high flow, and low-pressure drop, the features of which can be materialized by employing a powerful wet type solenoid and the rational flow channel design.

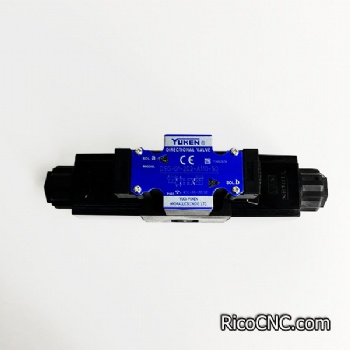

directional valve.jpg

DSG series hydraulic directional valve is the main series of Yuken directional valves. Hydraulic directional valve is the automatic industrial equipment basic component used to control hydraulic fluids, which belongs to actuators.
Yuken DSG valves.jpg

Yuken directional valve is used to control the directions, speed, and pressure of hydraulic fluids. This type of hydraulic directional valve adopts two solenoids designs, which means each end of the valve body has a hydraulic solenoid. Yuken DSG series hydraulic directional valves use wet type on-off solenoids, which have a long service life, little noise, and no external leakage dangers.

Yuken Hydraulic Solenoid Valves.jpg

Specifications for Yuken Solenoid    Valve

Valve Type

Solenoid

Model Number

DSG-01-2D2-A110-50

MFG

YCNRD52539

Max. Flow

63 L /min (16.6 G/min)

Max. Operating Pressure

31.5 MPA (4570 PSI) {Spool Type 60 Only}

Max. T-Line Back Pres.

16 MPA (2320 PSI)

Max. Changeover Frequency min-1

R Type: 300 cycles/min 120 cycles/min

Approx. Mass

2.2 kg

Yuken Solenoid valves.jpg

Hydraulic directional valves consist of the valve body and hydraulic solenoids. As one of the leading hydraulic valve manufacturers in the world, Yuken DSG directional is one of the most widely applied valves in different industrial control systems.
As a mature hydraulic basic component, Yuken DSG directional valves have some features that make them suitable for many different industrial control systems.

Other models for Yuken DSG hydraulic valves:
DSG-01-2B2-D24-50/70
DSG-01-2B2-A110-50/70
DSG-01-3C2-D24-50/70
DSG-01-3C2-A110-50/70
DSG-02-2B2-D24-50/70
DSG-02-2B2-A110-50/70
DSG-02-3C2-D24-50/70
DSG-02-3C2-A110-50/70 -
DSG-03-2B2-D24-50/70
DSG-03-2B2-A110-50/70
DSG-03-3C2-D24-50/70
DSG-03-3C2-A110-50/70
DSG-01-2B2-D24-N-50/70
DSG-01-2B2-A110-N-50/70
DSG-01-3C2-D24-N-50/70
DSG-01-3C2-A110-N-50/70
DSG-02-2B2-D24-N-50/70
DSG-02-2B2-A110-N-50/70
DSG-02-3C2-D24-N-50/70
DSG-02-3C2-A110-N-50/70
DSG-03-2B2-D24-N-50/70
DSG-03-2B2-A110-N-50/70
DSG-03-3C2-D24-N-50/70
DSG-03-3C2-A110-N-50/70

Yuken Directional Solenoid Valve.jpg
