4-011-11-0077 Top Vacuum Plate Upper Suction Pad Seals for VCBL-K1 and VCBL-K2
Schmalz part no.: 10.01.12.00488

This top vacuum plate, Homag/Week part No.: 4-011-11-0077 (4011110077), Schmalz No.: 10.01.12.00488, is the replacement seal for VCBL-K1 and VCBL-K2 vacuum block 140 x 115. It is the top pod pad seal for 4-011-11-0367, 10.01.12.00210, 10.01.12.00445, 4-011-11-0072, 10.01.12.02363, 10.01.12.02195, 10.01.12.00446, 10.01.12.02116, 10.01.12.00369, 10.01.12.02481, 10.01.12.02136, 10.01.12.03673, 10.01.12.01553, 10.01.12.00626, 10.01.12.01472 Schmalz vacuum suction pods.
VCSP-O 140x115x16.5.jpg

VCSP-O 140x115x16.5 upper pod cover size:
Dimensions (L x W): 140 x 115 mm
Height H: 16.5 mm

The 140x115x17mm replacement rubber gasket is the spare part for suction blocks, used with vacuum clamping systems.
top pad seals.jpg

Alternative OEM numbers:
Homag: 4-011-11-0077 (4011110077)
Weeke: 4-011-11-0077 (4011110077)
Busellato: 37400040 000
HolzHer: 2794144
IMA Klessmann: 092 739
Masterwood: VN 000101
Andi Anderson: N/A
CMS: 38603701
Reichenbacher: N/A
SCM / Morbidelli: 0790340006a
Schmalz part no.: 10.01.12.00488
top vacuum plate.jpg

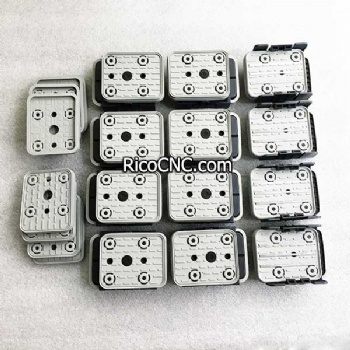

140 x 115 mm suction plate top for VCBL-K1 and VCBL-K2 are used for hold-down and clamping on PTP CNC woodworking processing center equipment. Such as Homag/Weeke, Felder, Busellato, Format 4, MasterCAM, IMA, HOLZ HER, Andi Anderson, Masterwood Project 355, CMS, Reichenbacher, SCM / Morbidelli, etc.

suction blocks cover.jpg

RicoCNC supplies a range of spare parts for vacuum suction blocks, it is a reliable woodworking resource, welcome your inquiry.
