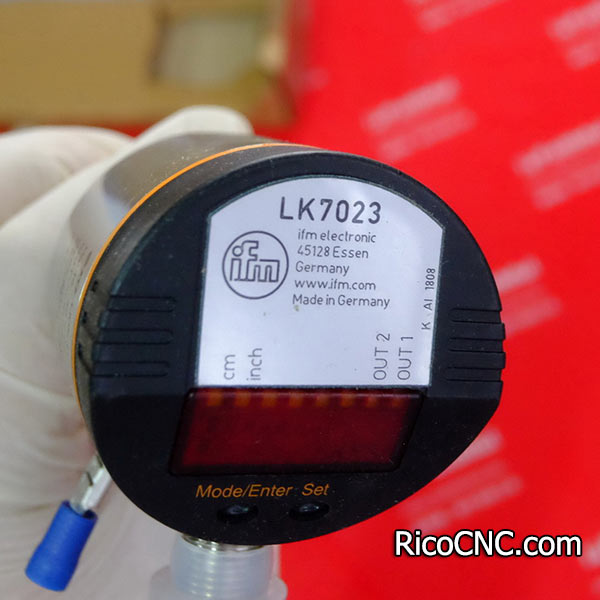

LK7023 Level sensor.jpg

IFM Electronic LK7023 Level Sensor lfm Liquid Level Switch


This is original IFM Electronic level sensor ifm liquid level switch.

Model: LK7023

Bisides, we also supply models: LK8123, LT8023, LK7024, LK7023.


The LK7023 electronic level sensor from ifm electronic with M12 connector works with a capacitive measuring method. The sensor with IP67 protection is optimized for use in water-based cooling lubricants and oils on machine tools and hydraulic power units. Thanks to the rod length of 472 mm, the LK7023 level sensor is ideal for compact containers. The current level is clearly visible on the 4-digit alphanumeric display. With a digital switching output, e. g. a 2-point level control can be realized. The second output can be used as dry-running protection or for overfill control.


Specifications

Operating voltage [V]: 12-30 DC V

Overload protection: yes

Short-circuit protection: yes

Reverse polarity protection: yes

Current consumption [mA]: <50

System: gold-plated contacts

Output function: normally open / closed; (configurable)

Electrical design: PNP/NPN

Protection class: III
