DEUBLIN Rotary Joint 902-121-188 Rotary Union UNION POP-OFF M16X1.5LH 18MM

Deublin 902-121-188 Rotary Union
902-121-188
UNION POP-OFF M16X1.5LH 18MM
COOLANT UNION
high speed coolant rotary joint
902-121-188 Rotary Joint
INQUIRY

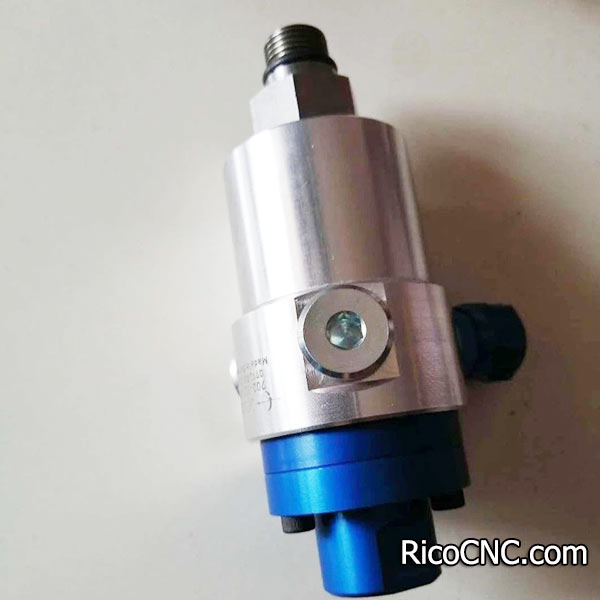

DEUBLIN Rotary Joint 902-121-188.jpg

This is original Deublin 902-121-188 rotary union.

Model: 902-121-188

Additional Description

-Single passage for coolant or MQL

-Pop-Off™ technology allows unlimited dry running without media pressure

-Full-flow design has no obstructions to trap swarf or debris

-Bearing-supported with threaded rotor for easy installation

-Deep groove radial ball bearings for smooth operation

-Labyrinth system and large vents to protect ball bearings

-Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

-Anodized aluminum housing resists corrosion

Pop Off Rotating Union for Coolant Service with Dry Running

Media: Water-based Coolant or MQL (Oil Mist) up to 10 bar (145 psi)

Filtration: ISO 4406 Class 17/15/12, max. 60 micron

Maximum Speed: 12,000 min (-1) 12,000 rpm

Maximum Pressure: 70 bar; 1,015 psi

Maximum Flow: 82 I/min; 21.6 gpm

Maximum Temperature: 71°C; 160°F
