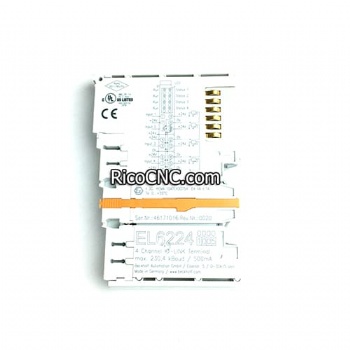

4086050645 4-086-05-0645 Terminal EL6224-1005 4-Channel IO-LINK Master


This is a 4-channel communication interface, IO-Link, master made by Beckhoff, the model number is EL6224, EL6224-1005 is the model special for HOMAG machine ,the HOMAG part number is 4086050645 4-086-05-0645.

The EL6224 IO-Link terminal enables connection of up to four IO-Link devices, e.g. actuators, sensors or combinations of both. A point-to-point connection is used between the terminal and the device. The terminal is parameterized via the EtherCAT master. IO-Link is designed as an intelligent link between the fieldbus level and the sensor, allowing parameterization information to be exchanged bidirectionally via the IO-Link connection.

4-086-05-0645 bus terminal.jpg

4-channel communication interface.jpg

Beckhoff for HOMAG:

4086050497 PLC Module 4-086-05-0497 Relay KL4001 for HOMAG

Homag 4086050463 Beckhoff KL2408 8-channel Digital Output Bus Terminal Module

Homag 4-086-05-0462 Beckhoff KL1408 Digital Input Terminal 8-Channel Automation Module

Homag 4-086-05-0351 BECKHOFF KL9100 Power Supply Module 24 DV Bus Terminal

Homag 4-086-05-0628 Beckhoff BK1250 EtherCAT and Bus Terminal Coupler

4086050504 Homag 4-086-05-0504 Beckhoff KL5151-0021 Incremental Encoder For Edgebanding Machine

4086050682 Beckhoff EK1100 EtherCAT Coupler Interface Modules for Homag Machine

4086050347 4-086-05-0347 BUS Module BK5120-0100-H CANOPEN Homag

4086050615 4-086-05-0615 Compact Bus Coupler Beckhoff BK9053-1006

4086050630 Homag 4-086-05-0630 PLC Module Beckhoff Bus Coupler EtherCAT BK1120

Beckhoff 4 x IO-Link terminal EL6224.jpg

RicoCNC also supply parts for many other machine such as Biesse Roxyl, Biesse Akron, Biesse Artech, Biesse Ergho, SCM, IMA, HOMAG, Brandt, Holz-her, Casadei Busellato, Felder, Laguna Bandit, CEHISA, IDM, Fravol, IDIMATIC, LIGA, KDT, Naixing, Huali, Hold and other Chinese edgebanders, etc.

HOMAG IO link.jpg

Please check our website, if you can not find it, please contact us for more information!
