10.01.12.00378 VCBL-K1 130x30x50 L Vacuum Pods for Masterwood Machining Centers

10.01.12.00378 VCBL-K1 130x30x50 L Vacuum Pods for Masterwood Machining Centers

-VCBL-K1 Ventosas de 130x30x50 L
- Número de pieza: 10.01.12.00378
- Altura: 50 mm, disposición: longitudinal
- Ventosas para consola de 1 circuito Schmalz
- Unidad de vacío para consola de 1 circuito Schmalz
- Ventosas de vacío CNC 10.01.12.00378
- Ventosas para centros de mecanizado Masterwood
INQUIRY


10.01.12.00378 VCBL-K1 130x30x50 L Vacuum Pods for Masterwood Machining Centers

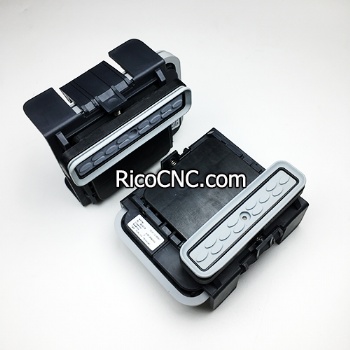

This is a vacuum block VCBL-K1 130x30x50 L for Schmalz 1-circuit console. This vacuum pod can be used in the same use as Schmalz part No. 10.01.12.00378, widely used with Masterwood CNC machining centers with pod and rail table.
CNC vacuum pods 10.01.12.00378.jpg

The dimension of 110.01.12.00378 VCBL-K1 130x30x50 L
Dimensions (L x W): 130 x 30mm
Height: 50 mm
Arrangement: lengthways
Upper rubber cover: 130 x 30mm 10.01.12.00805 10.01.12.00804
Bottom rubber pad: 140 x 115mm 10.01.12.00228

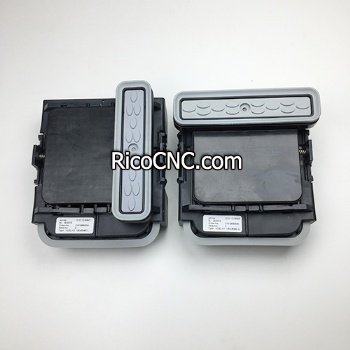

Masterwood vacuum block.jpg

The top and bottom rubbers are replaceable.

VCBL-K1 130x30x50 L.jpg

100mm height 130x30x100mm vacuum pods and 10.01.12.00647 also have for supply here.
50mm height vacuum pods.jpg

The vacuum blocks with the height h=50/85 +/- 0.06mm (depends on type), are fixed on the consoles with mechanical clamps to prevent them from moving during the handling of the workpiece. The workpiece and the vacuum clamp are then securely and precisely clamped with the aid of a vacuum for machining. Vacuum clamp bodies are plastic unless otherwise noted.

130x30 suction cup.jpg
