4-035-01-2503 4035012503 ISO 15552 Pneumatic Cylinder D=50 HUB= 80 G1/4 Festo DNC-50-80-PPV-A

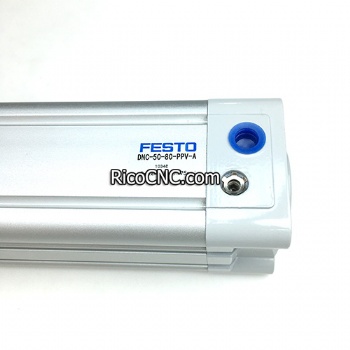

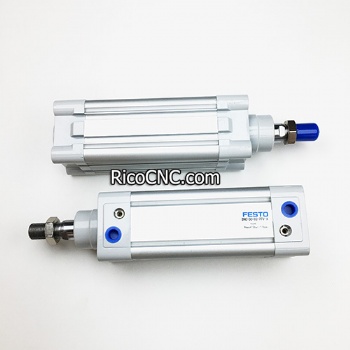

This cylinder is ISO 15552, air, dbl act, 50x80mm stroke, sensor ready, cushion. Usually used for Homag / Weeke / Brandt, Homag part number is 4-035-01-2503 or 4035012503.

4035012503 ISO 15552 Pneumatic Cylinder.jpg

4-035-01-2503 CYLINDER specification:

Stroke

80 mm

Piston diameter

50 mm

Piston rod thread

M16x1.5

Cushioning

Pneumatic cushioning, adjustable at both ends

Mounting position

optional

Conforms to standard

ISO 15552

Piston-rod end

Male thread

Design

Piston

Piston rod

Profile barrel

Position detection

Via proximity switch

Symbol

991235

Variants

Piston rod at one end

Operating pressure

0.06 MPa ... 1.2 MPa

Operating pressure

0.6 bar ... 12 bar

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 °C ... 80 °C

Impact energy in end positions

0.2 J

Cushioning length

22 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

990 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

1178 N

Moving mass for 0 mm stroke

538 g

Additional moving mass per 10 mm stroke

25 g

Basic weight for 0 mm stroke

1260 g

Additional weight per 10 mm stroke

64 g

Type of mounting

Via female thread

With accessories

Pneumatic connection

G1/4

Note on materials

RoHS-compliant

Material cover

Die-cast aluminium

Coated

Material seals

TPE-U(PU)

Material piston rod

High-alloy steel

Material cylinder barrel

Wrought aluminium alloy

Smooth anodised

 ISO 15552 PRA D=50 HUB= 80 G1:4.jpg

Festo DNC-50-80-PPV-A.jpg

RicoCNC also can supply other models such as:

4035010011 Aventics 0822122004 Air Cylinder

4035010016 Aventics 0822350003 Air Cylinder

4035010054Air Cylinder 0822121009

4035010234 Air Cylinder 0822334503

 ISO 15552 Pneumatic Cylinder.jpg

Welcome to contact us if any inquires!

Pneumatic Cylinder 50:80.jpg
